Intellian

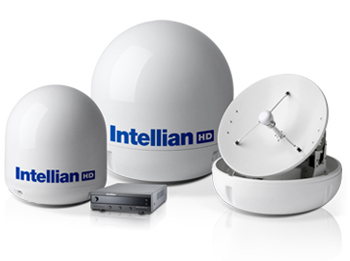

Intellian-i3

(44厘米x43厘米)

RODUCT MODELS產品型號

B4-309S

i3 US/Canada System

B4-I3DN

i3 DISH Network Package for NA (w. MIM)

B4-I3DNSB

i3 DISH Network Package for NA (w. MIM + DISH Network HD Receiver)

B4-309SDT

i3 DirectTV SD Ku-band only Package for NA (w. DirectTV Receiver)

B4-309L

i3 DLA Latin America System

B4-309U

i3 Sky Mexico/Europe System

PHYSICAL規格

Radome Height高度

44 cm (17.3 inch)

Radome Diameter直徑

43 cm (16.9 inch)

Reflector Diameter直徑

37 cm (14.6 inch)

Weight重量

9 kg (19.8 lbs)

ENVIRONMENTAL環境

Operating Temp. Range操作溫度

-25°C ~ 55°C (-13°F ~ 131°F)

Storage Temp. Range儲藏溫度

-40°C ~ 80°C (-40°F ~ 176°F)

Water Ingress防水指標

IPX6

Approvals認證

CE / FCC

Warranty保修

3 Years Parts and 1 Year Labor

PERFORMANCE性能

Reception Frequency頻率

Ku-band : 10.7 ~ 12.75 GHz

Polarization極化方式

RHCP / LHCP左/右旋, Vertical / Horizontal垂直/水平

EIRP

50 dBW

Azimuth Range方位角范圍

680°

Elevation Range俯仰角范圍

10° ~ 80°

Ship's Motion船舶擺動

Roll ±25°, Pitch ±15°

Roll & Pitch Response Rate擺動速度

60° / sec

Turn Rate轉速度

60° / sec

RF Output輸出

Dual Output

ANTENNA CONTROL UNIT控制單元

Dimensions (W × D × H)尺寸

17.8cm × 21.7cm × 5.4 cm (7.0 inch × 8.5 inch × 2.1 inch)

Weight重量

1.2 kg (2.6 lbs)

Display顯示

2 line 20 character VFD module 2行20字符VFD顯示模塊

Power Input電力

直流9.0~30.0V DC (Typ. 30W, 50W)

Power Output電壓

12V DC

GPS Interface全球定位系統接口

Built-In (NMEA 0183 GPS)

WiFi支持

Yes
